Alu-Panel

Our aluminium panels are characterized by their extremely high load-bearing capacity, even on soft surfaces. We create temporary paths and surfaces for heavy-duty transportation and large construction machinery.



Features

Due to the ideal load distribution and traction, the lightweight aluminum panels are the optimal alternative to conventional steel plates. The seamless transitions also allow pedestrians to cross without tripping or slipping.

The panels are easy to install thanks to the form-fit and friction-locked composite system.



Logistics

Aluminum panels are easier to transport than the alternative steel panels for temporary use. More panels can therefore be loaded onto trucks, which reduces transportation costs.



Our services

We generally offer our products and services for hire from stock, for self-collection or including service, i.e. with transportation, assembly and dismantling according to plan and final cleaning. On request, we can also offer you the option to purchase. We will be happy to provide you with a free, non-binding and individual offer.

Technische Daten Alu-Panel

Technical Data

Material:

Aluminium

Measurements:

2450 mm x 3000 mm x 47,5 mm

Usable area:

7,35 m² per panel

Weight:

approx. 250 kg

Surface:

riffled

Colour:

silver

Load capacity:

approx. 160 t (depending on substrate)

Transport:

80 pcs. (588 m²)

Possible uses

For example as a mobile construction road

Icon Straßenbau & Zufahrtswege

Construction &
access routes

Icon Konzerte & Events

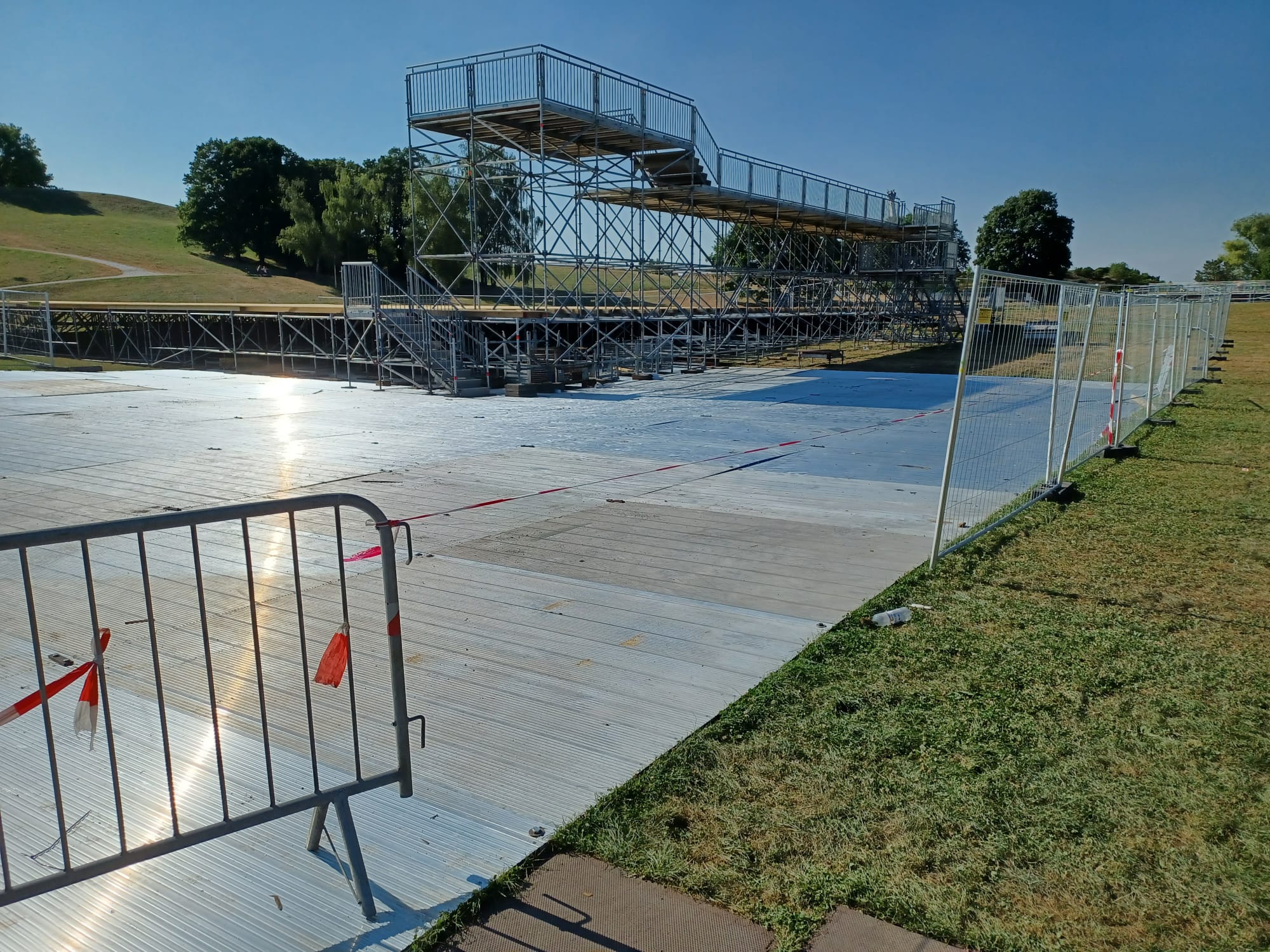

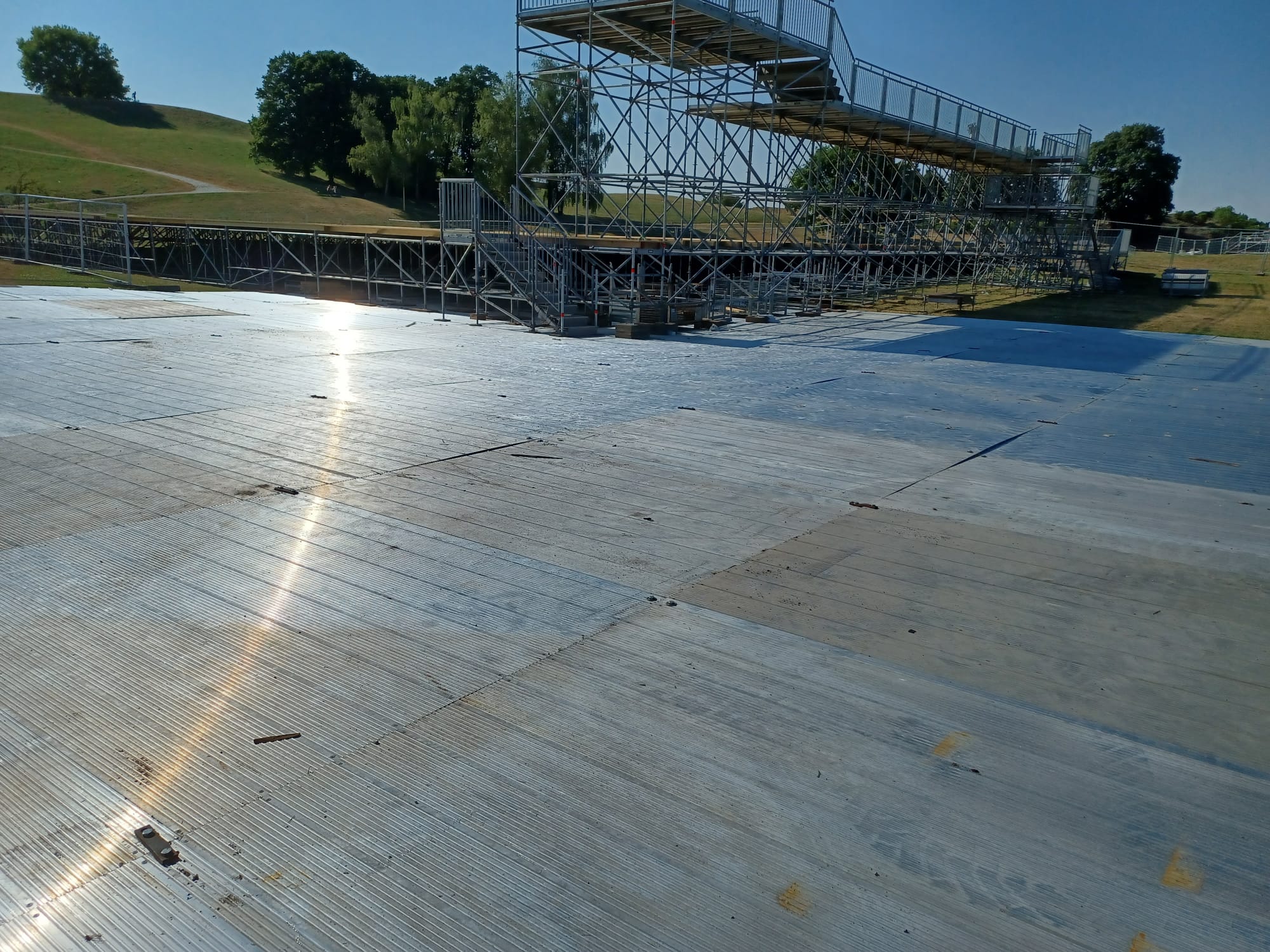

Concerts &
Events

Windkraft- & Anlagenbau

Wind power &
plant construction

Schwerlast & Transport

Heavy load &
transport

Kranstellflächen

Crane set-up area

Leitungsbau

Line construction
